Description
Introducing the Flagship Wouxun KG-UV9GX+ High Power Analog Superhet GMRS Emergency Two-Way Radio & Multi-Band SHTF Scanner
It’s everything you love about the famous Wouxun KG-UV9GX, with a much brighter display and USB-C battery, charger & cable accessories!
NEW Brighter Color TFT Display with 5X Higher Output & 4 Color Screen Modes
1000CD/Nits output, perceived as at least 2X brighter than original UV9-Series 200CD/Nits display.
(See example UV9PX+ images below shot in bright light with max display output. Note that the difference seems even greater in person, as web images compress the brightness.)
Day 1 Screen Mode (New Display / Old Display)
Day 2 Screen Mode (New Display / Old Display)
Covert Screen Mode (New Display / Old Display)
Classic Screen Mode (New Display / Old Display)
Key Features
- Brighter 1000CD/Nits Output Color TFT Display with 4 Screen Modes (Day 1, Day 2, Covert & Classic – older UV9-Series models are only 200CD/Nits output)
- Extended Capacity 2200 mAh (16.28 Wh) USB-C Chargeable Li-ion Battery for 22+ Hours of Operation (can also charge with optional desk charger)
- Compact USB-C AC Smart Charger/Adapter & Quality Anker 6′ Braided USB-C to C Charging Cable (not a cheap throw-away plastic cable)
- 999 Memory Channels (+ 20 FM Broadcast Radio Memories)
- Analog FM UHF GMRS Portable Handheld Two-Way Radio Transmitter (with advanced scanning capabilities)
- 2 Multi-Band Double-Conversion Superheterodyne True Dual Receive (TDR) Receivers (Rec. A tunes all bands, Rec. B tunes normal UV range)
- Wide 7-Band Receive Range with GMRS, FRS, MURS, 2 m HAM, 70 cm HAM, 1.25 m “220” HAM, AM AIR, MMS (Marine), LMR, Business, Public Safety, GOV, MIL & Broadcast FM Radio Bands
- Pre-Programed for GMRS + SHTF* (906 Channels, User Programable – Custom Programing Table PDF download below)
- Tri-Power 5.5/2/0.5 Watt (ERP) Tx with Custom Power Calibration for GMRS Band Center (instead of Chinese or US bands on other GMRS & amateur radios)
- Priority Channel Quick-Jump Feature (Instantly jump to your Priority Channel, a BetterSafeRadio exclusive)
- IP55 Rated for Protection from a high level of Dust & Water Intrusion (jets from any direction)
- Optional Extra Capacity 3200 mAh or thin High Capacity 2000 mAh Li-ion Batteries, Desk Charger & AC Adapter (all sold separately)
- FCC Part 95E & Part 15B Certified (FCC ID: WVTWOUXUN19)
- Simplex & Repeater Capable (with simple front panel programing)
- Memory & VFO Modes (Tx locked to GMRS frequencies/channels per FCC)
- Dual-PTT (convenient Duplex or Dual-Watch Tx operation)
- Dual Simultaneous Receive, Dual-Watch & Single-Receive Modes (Monitor 1 or 2 channels or VFOs at the same time)
- Dual Simultaneous Memory & VFO Scanning (Scan 2 channels or VFOs at the same time)
- 10 Scan Groups (user-definable via programing software, no channel limit, can overlap)
- 3 Scan Review Modes (Search, Timed & Carrier options)
- Scan-Advance (quickly advance past unwanted signals in either direction while scanning, a BetterSafeRadio exclusive)
- Priority Scan (always check your priority channel during normal operation)
- Full-Duplex Operation for Tactical & Safety/EmComm (Emergency Communications) Operation
- Multiple Sub-Receiver Muting Modes (control Duplex & Dual-Watch Rx audio the way you want)
- Wide & Narrow Bandwidth (for FRS compatibility & optimal Tx/Rx performance on different bands)
- Repeater Reverse (swap the input/output frequencies on-the-fly)
- Talk-Around/Direct Mode (handy for monitoring repeater input on-the-fly)
- 50 CTCSS PL Tones & 105 DCS Privacy Codes (Independently front-panel programable, plus direct-entry of non-standard tones/codes)
- CTCSS/DCS Search & Auto-Save (to current Memory channel, Tx, Rx or Both)
- 10 Functional Squelch Levels (with programable side-key Monitor)
- Dual Signal Indicator LEDs (with customizable power status blinking)
- Display Backlight Timer & Dimming (customizable)
- Full Backlit Keypad & FPP (Front Panel Programing, with 4 Auto-Lock Modes)
- Active DTMF tones (via keypad during Tx)
- 3 Programable Function Side-Keys (customizable with many radio/Menu functions – download Custom Programing Table PDF with PF Key defaults below)
- 2.5 kHz Tuning Steps (tune any signal, also 5, 6.25, 10, 12.5, 20, 25, 30, 50 & 100 kHz steps)
- Brighter LED Flashlight (with more usable beam, activated via programable side-key, a BetterSafeRadio exclusive)
- Roger Beep (3 modes: Beginning of Tx, End of Tx, or Both)
- Battery Saver (4 receiver duty-cycle Modes with 1 user-definable mode)
- Time-Out-Timer (with variable warning beep)
- 8-Character Alpha Memory Channel Names (for quick channel location/identification)
- Voice Announce (Native English) & Key Beeps (for enhanced accessibility, optional)
- BCL (Busy Channel Lockout, to avoid transmitting over another operator)
- VOX (Voice-Operated Transmit, for hands-free operation)
- Single-Tones (for legacy repeater activation/access)
- DTMF & ANI PTT-ID Side-Tones for Select/Group Calling (advanced tone calling/monitoring)
- Remote Stun/Kill/Monitor (for operational security)
- Stopwatch (with .1 sec resolution, 99 minutes max)
- Functional Emergency RESET with Useful Default GMRS Channels (Simplex & Repeaters), NOAA NWS WX Weather, EmComm & More (restore basic emergency operation in just seconds)
- Loud 500 mW Speaker Output (clean, quality audio)
- Standard Kenwood K1 Audio & Programing Jack (for wide accessory compatibility)
- Rugged, Durable, Compact Design (drop-resistant ABS plastic shell with aluminum frame construction)
- 8″ High-Gain Multi-Band GMRS-Tuned SMA-Male Antenna (removable)
- Wouxun-Branded Wrist Strap
- Sturdy Belt Clip with Screws
- English Quick-Start Manual
- Free Downloadable Customer Programing Software (download CPS below, requires compatible or “red” Wouxun PCO-009 USB Programing Cable)
- CHIRP Compatible for Free Customer Programming Software (using UV9GX driver), or premium RT Systems UV9G Advanced Programming Software & USB Cable Kit
- Full Line of UV9-Series Accessories – all compatible with Wouxun UV9PX+, UV9DX, UV9PX, UV9GX, UV9G PRO, UV9G LITE, UV9P, UV9D Mate, UV9D Plus+ & UV9D(Plus)
Operating Frequencies
| Tx MHz (Transmit) | Rx MHz (Receive) |
| 76–108 FM Broadcast Radio | |
| 108–136 AM AIR Band
Incl. FBI, CAP, Military, News, Commercial AIR. |
|
| 136–180 VHF
Incl. US MIL, US GOV, MARS, CAP, USCG, ISS, Auto Racing, ARC, MURS, LMR (Business), Public Safety, SAR, VMED, VLAW, MMS, VTAC, AAR, NOAA NWS WX, NTSB, NIRSC, NIFC. |
|
| 219–250 VHF
Incl. 1.25 m HAM, NORAD, US Army Helo, US MIL AIR. |
|
| 350–400 UHF
Incl. USAF, NORAD, USCG, US MIL, ISR. |
|
|
462.550–467.725 30 GMRS Frequencies |
400–512 UHF
Incl. US GOV, USAR, UIR, ISS, LMR (Business), Public Safety, AAR, UTAC, ARC, MMS RPT, Comm. Airlines, GMRS, FRS, UMED. |
| 700–986 UHF
Incl. US DHS, LMR, 8TAC, Cordless Phones, 33 cm HAM. |
Shipped with Tx locked to GMRS (bolded range) for Part 95E compliance.
Note: The extended scanner bands are available only on the top “A” receiver, while the bottom “B” receiver covers the normal UV range (136–174 & 400–512).
ReadySafeGo™ pre-programed for GMRS + SHTF* with 906 channels! (a $20 Value! – download Custom Programing Table PDF below)
Key Description
The Wouxun KG-UV9GX+ is the most recent GMRS firmware and hardware modification of the well-known and highly regarded Wouxun UV9-Series radio line, which includes the Wouxun KG-UV9GX/UV9PX/UV9P/UV9D Mate/UV9D Plus+, and UV9D (Plus) GMRS and amateur radios. This model was co-designed by Mark Lindsey (K6LED) and is exclusively distributed by BetterSafeRadio.
The Wouxun 9-Series radios are renowned for their exceptional double-conversion superheterodyne receivers, delivering competitive performance in comparison to some of the more expensive Japanese radios available in the market. From everyday recreational or hobby use to emergency EmComm and SHTF events, this radio delivers unwavering performance, reliability, and a comprehensive suite of professional features, all while maintaining an intuitive and user-friendly interface, even for beginners.
The Wouxun UV9GX+ stands out as the most functional and cost-effective model within the entire line of Wouxun GMRS radios, offering similar RF performance to other models while incorporating several hardware and feature enhancements and additions over other UV9-Series radios. The UV9GX+ will accept most programing codeplugs from other UV9-Series radios and is programmatically identical to the UV9GX.
Shipping Note: Due to USPS restrictions, orders with Li-ion batteries must be shipped by Ground Advantage (surface transport). Packages with batteries (with or without a radio) weighing over 5 pounds will require multiple shipments, which may require an additional shipping fee. I will contact you if necessary when processing your order. Unfortunately, I’m not shipping internationally at this time, but I’m happy to sell you a radio if you use a US-based package forwarding services such as Shippsy.com & Stackry.com (you take full responsibility for shipment and delivery beyond the US delivery address and any import duty fees or restrictions). Please Contact Me if you have any questions before ordering.
Detailed Description
The BetterSafeRadio-Exclusive Wouxun KG-UV9GX+ is a 999 channel 5.5 Watt programable handheld analog double-conversion superheterodyne FM GMRS two-way radio transceiver. It features a wide 7-band receive range, TDR (true dual receive), full-duplex, repeater capability (with CTCSS/DCS split-tones and non-standard PL tones), and pro features ideal for individual hobbyists, families, scouts, SHTF preppers, survivalists, overlanders, 4X4 off-roading enthusiasts, drivers, delivery providers, long-haul truckers, weather chasers, SKYWARN trackers, scanner enthusiasts, and EmComm emergency communications operators. It includes 2.5 kHz tuning steps and comes custom pre-programed with 906 channels for GMRS + SHTF* (ships with Tx locked to GMRS bands for Part 95E compliance), for dual-use GMRS transceiver & analog AM/FM scanner operation. It’s user programable with free downloadable Wouxun programing software (download CPS below – requires optional PCO-009 USB Programing Cable & x86 Windows 7, 8, 8.1, 10 or 11, or a Mac running Parallels), free open-source CHIRP programing software, or the RT Systems UV9G Advanced Programing Software & USB Cable Kit.
With a full legal limit of 5.5 (ERP) Watts on high power and a simplex/talk-around range of 2 to 7+ miles (35–100+ miles when used with a repeater or at optimal elevations with minimal line-of-sight obstructions), the Wouxun KG-UV9GX+ provides reliable personal or emergency radio communications for family disaster preparedness, scouting troops, prepping, survival, search & rescue, off-roading, trekking, hiking, Neighborhood Watch, REACT, CERT, GA (Guardian Angels) & other groups to keep in touch when other methods of communication break down. IP55 rated, Part 95E & Part 15B FCC Certified. The UV9GX+ is custom power calibrated (unlike some models from other dealers) for US GMRS simplex & repeater use (at 465 MHz band centers) and transmits on all 30 GMRS radio frequencies.
The Wouxun KG-UV9GX+ is built on the same UV9-Series radio platform as the more powerful UV9PX, UV9P & UV9D Mate amateur/HAM radios, giving the UV9GX+ ample transmit headroom – it won’t break a sweat running on high power all the time.
The UV9GX+ comes pre-programed ready-to-use with all GMRS simplex & repeater frequencies (along with several other common radio services (Rx only), and many potentially useful SHTF scanner channels), along with extra repeater banks for additional areas of operation you might travel to, or for dense area with multiple repeaters on the same frequency. There’s also a FRS compatibility bank so you can easily communicate with existing cheap FRS walkie-talkies. You can easily change the PL Tones (or DCS Codes) from the front panel on any of these pre-programed channels. This is handy when you want to find travel assistance, help during an emergency, or quickly jump to an open simplex frequency without having to re-program on the fly every time. The 9GX+ can be easily field programed via the front panel keypad or you can use a variety of software options to add as many GMRS (or other) channels (simplex or repeater) as you desire. Or, turn the radio into an all-receive scanner – It’s totally up to you!
The Wouxun KG-UV9GX+ operating range is as good or better than any other affordable Commercial/Ham or GMRS radio, even with its included high-gain stock flexible antenna, which is better than most radios in this price range (and above). As well, with an after-market high-gain duck, whip, telescoping, emergency roll-up J-pole, mobile mag-mount or base station antenna, you will see a significantly improved talk range, even when communicating with another stock handheld. Using the Wouxun KG-UV9GX+ with a repeater will greatly extend your potential operating range, even as far as 100+ miles.
In addition, the UV9GX+ features simultaneous dual-receiver scanning (of memories or VFOs), 10 user-definable scan groups, and improved “Scan Advance” functionality over previous 9-Series models (first introduced with the UV9G PRO GMRS radio), turning the KG-UV9GX+ into a powerful portable analog communication device & scanner, especially with its high transmit power, wide 7-band receive range, NOAA WX Weather Rx, FM Broadcast Radio Rx, and a full host of Wouxun UV9-Series compatible accessories (available separately). Check out all of the Wouxun KG-UV9GX+ and UV9-Series accessories, such as the highly-tuned antenna options from Smiley Antenna.
Note that the UV9GX+ can be RESET using the [MENU_61 “RESET”] function. Doing so will return the radio to a standard 44-channel GMRS configuration (with useful channels such as all GMRS Simplex & Repeater frequencies, all NOAA WX Weather, Marine Emergency, AIR Emergency & SAR frequencies) and will erase all of the other pre-programed channels. If you ever find yourself in an emergency situation and need to restore basic functionality quickly, this RESET feature will get you there in a few seconds. Please save an initial backup your radio codeplug (programing file) using the free Wouxun CPS (customer programing software) and the “red” Wouxun PCO-009 USB Programing Cable (sold separately), free CHIRP software, or the RT Systems Advanced Programing Software & USB Cable Kit (sold separately) in case you ever unintentionally RESET the radio. If you’ve accidentally RESET your radio, please see the restoration options on my Custom Radio Programing Services page.
Feature Highlights
FCC Certified GMRS Radio, Brighter Display, High Power, Repeater Capable & IP55 Rated
The Wouxun KG-UV9GX+ is an excellent FCC Certified GMRS radio (FCC ID: WVTWOUXUN19) for personal hobbyists, individuals prepping for potential crises, outdoor enthusiasts, and families seeking emergency communications for NNW (National Neighborhood Watch), CERT, REACT, GA (Guardian Angels), and municipal/private neighborhood safety groups. Equipped with a newly enhanced display that delivers a 5X brighter output (perceived as 2X+ brighter), this new model is improved for outdoor use and bright light conditions. High output with 5.5 Watts of transmit power for maximum range and impressive simplex & repeater performance. Commercial-grade durability and IP55 Rated (Intrusion Protection; dust and water jet resistant) for outdoor use. Pre-programed for GMRS operations and SHTF preparedness by default!
Emergency, Safety & Convenience Features
The UV9GX+ incorporates a convenient LED Safety Flashlight with a brighter and more usable/focused beam (only on BetterSafeRadio models). The advanced scanning capabilities include a BetterSafeRadio-designed Scan-Advance feature to quickly move past unwanted signals with a simple key press or knob twist while scanning, and multiple scan review/resume modes. Also unique to this BetterSafeRadio design is the Priority Channel Quick-Jump feature, which allows jumping to a user-defined Priority Channel with a single keypress, even while scanning – You’ll be ready to make an emergency call or tune into your “home, family or group” simplex, repeater or NOAA Weather traffic instantly. The programable Hands-Free VOX feature offers added convenience. The UV9GX+ works great for field SAR (Search & Rescue), base camp, or special event operations. There’s even a Digital Stopwatch feature, useful for emergency situations, recreational activities, and sporting events.
True Dual Receive, Dual-Scanning & Broadcast FM Radio
Allows simultaneous monitoring of two VFO frequencies or memory channels (or one of each) in True Dual Receive (TDR) mode (V+V, U+U, V+U, or U+V). Additionally, you can enable a “Dual-Watch” mode by setting the second “sub-receiver” to mute when the first “MAIN receiver” is actively receiving a signal. You can also simultaneously scan frequencies or channels on both receivers, or utilize the Priority Scan feature to continuously check for activity on a user-defined priority channel in the background, ensuring that you never miss a call – Great for scanning emergency channels while monitoring a “home” repeater or frequency, or even listening to a ballgame, music, talk radio, or emergency information on a Broadcast FM Radio station while monitoring the Prepper/Emergency channel, or any other frequency or channel at the same time. A single receiver mode is also available for simplified or dedicated task-specific operations.
999 Channels, Dual-PTT, Dual-VFO, FPP, 3 Power Levels & Custom US Calibration
Conveniently store up to 999 VHF/UHF Channel Memories with 8-character alpha-numeric name tags, and 20 additional Broadcast FM Radio station memories (for a total of 1019 channels). Includes an optional programable side-key for Dual-PTT (transmit) on the alternate receiver, for flexible and convenient emergency or event operation. The flexible Front Panel Programable (FPP) Dual-VFO mode enables direct entry of any two frequencies within the radio’s extensive receive range via the keypad. Three programable power levels (5.5/2/0.5 Watts) are available for FRS operating compatibility and battery life optimization, and the GX+ is custom power calibrated for simplex and repeater operation at the US GMRS band center of 465 MHz (instead of the typical odd Chinese calibration on other converted amateur radios).
Pro Features & Ample 1 Year Warranty!
The Wouxun KG-UV9GX+ is a user-friendly radio characterized by its compact size, intuitive menu system, and flexible operating capabilities. The GX+ is a high-end GMRS radio that includes a comprehensive list of advanced features typically found in such devices (refer to Key Features section above), and some that are unique. This makes it an ideal choice for everyday carry (EDC) or emergency bug-out situations, as well as personal/family recreation. Backed by an impressive manufacturer’s 1-Year Limited Warranty for the radio and six months for the battery, charger, and included accessories, the UV9GX+ is the GMRS radio you have always desired!
What’s Included?

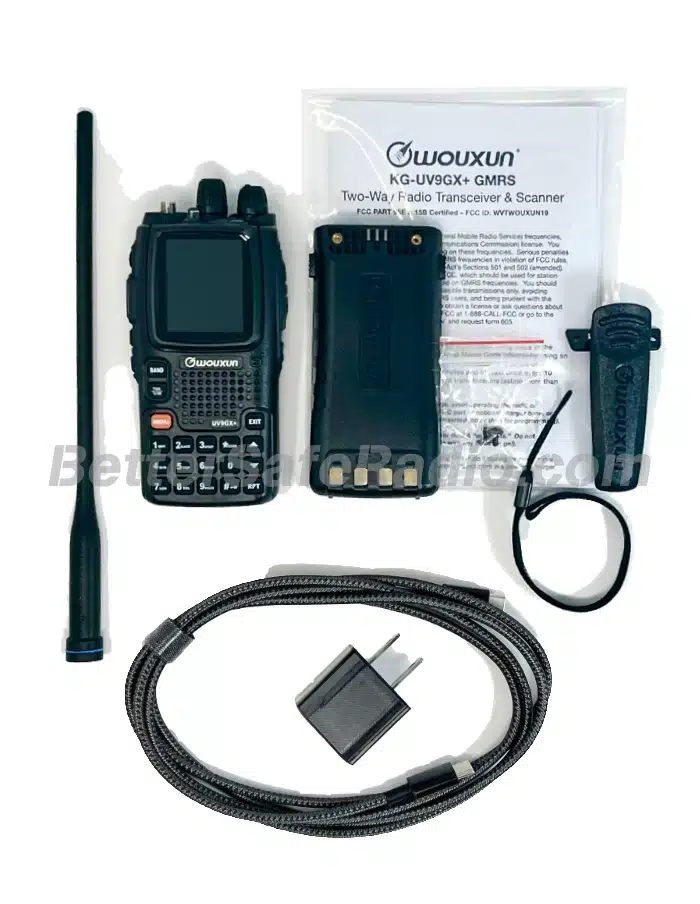

Each Wouxun KG-UV9GX+ color-printed gift box (see images above, ships in UV9GX box but says UV9GX+ on label) includes an Extended Capacity BLO-033 2200 mAh (16.28 Wh) USB-C Chargeable Li-ion Battery for 22+ Hours of Operation between charges with battery-saver mode enabled, and a compact USB-C AC Smart Charger/Adapter & Anker 6′ Braided USB-C to C Charging Cable. The optional Extra Capacity BLO-012 3200 mAh Li-ion Battery and the original thinner High Capacity BLO-010 2000 mAh Li-ion Battery are available separately. Also included is a flexible, removable Dual-Band 8″ High-Gain GMRS-Tuned Tx, Wideband Rx SMA-Male rubber duck antenna for long range comms., a Sturdy Belt Clip with metal screws and threads, a Wouxun-Branded Wrist Strap, and a new English Quick-Start User Manual (downloadable as a PDF below), which includes basic operations and all radio MENU options. The original English User Manual (from the parent UV9P model) can also be downloaded below, which contains more details and more advanced features. You can also download the Pre-programed Custom Channel Table below, which also contains channel descriptions, suggested channel designations, radio default side-key settings, default scan group assignments, and a glossary of service abbreviations.
Each radio is inspected to make sure all parts are included, is hand-packed with care inside a large waterproof zip bag with ample bubble padding, and shipped via USPS in a discreet, strong corrugated cardboard box with a high 200 lb/sf rating and all appropriate hazmat safety labels, to ensure timely, proper and safe delivery.
Optional Accessories
Compact Speaker-Mic, Heavy Duty IP67 Speaker-Mic, Spare Extra Capacity 3200 mAh Li-ion Battery Pack, Spare Extended Capacity 2200 mAh USB-C chargeable Battery Pack, Spare High Capacity 2000 mAh Li-ion Battery Pack, 12V Cig. Lighter Battery Eliminator, 12V Car Charger Adapter, USB Desk Charger Adapter, Tuned Single-Band and Tri-Band High-Gain Smiley Antennas, Covert Earpiece w/ Lapel Mic & PTT, G-Hook Comfort Earpiece with Lapel Mic, USB Programing Cable, Optional Desk Charger, Replacement Belt Clip, Nylon Radio Case (windowed) w/ Metal Belt Clip, and more coming soon. Browse all of the UV9-Series Accessories.
Free Downloads
• Custom Programing Table
• User Manuals & Product Flyer
• Customer Programing Software (CPS) & USB Drivers
License Required: Transmitting on the GMRS (General Mobile Radio Service) requires a license (no test), which is currently $35 for a 10 year term, covers your entire extended family, and typically takes only a few days to obtain from the FCC. The Wouxun KG-UV9GX+ is not “type-accepted” for normal use on other bands such as ARS (Amateur/HAM), MURS, MMS, LMR, etc. See the new companion KG-UV9PX+ HAM radio or the upgraded KG-916+ GMRS for legal GMRS operation. Per FCC rules, the UV9GX+ can note be unlocked for Tx on other bands.
*IMPORTANT: This radio is meant for personal use by licensed GMRS operators during normal or emergency “SHTF” (S#it Hits The Fan) situations. Although my radios come programed for Part 95E compliance with transmit locked to only the GMRS bands, you are ultimately and solely responsible for operating this device in compliance with FCC licensing and regulations, regardless of how it comes programed. For EmComm use, consult your COML regarding device compliance before any official public service operation. The buyer/owner/user is solely responsible for any harm or loss caused by the use or misuse of this device. Please Contact Me if you have any compliance questions before purchasing.
Use Responsibly: The radio customer programing software (CPS) available here as a free download (above) is provided by the manufacturer as a courtesy and is not guaranteed to be compatible with every possible computer system available now or updated in the future. While nearly everyone has success operating the software, the software does not constitute part of this radio product and the inability to successfully operate the software does not constitute a DOA, incomplete, or dysfunctional radio product. Other free and paid software programming options (detailed above) are also available. By downloading and using the radio customer programing software (CPS), you agree to be solely responsible for operating your radios in compliance with FCC licensing rules and regulations. BetterSafeRadio and Wouxun are not responsible for any harm caused by the use or misuse of the software to or by your radios.
Note: There’s a small error in the Quick-Start User Manual included in the initial stock of UV9GX+ radios, where it states that you must identify every 10 minutes using your amateur radio callsign while transmitting. In fact, it’s your GMRS callsign that you must use, but only every 15 minutes. Please download the PDF version of the manual for the corrected information.
